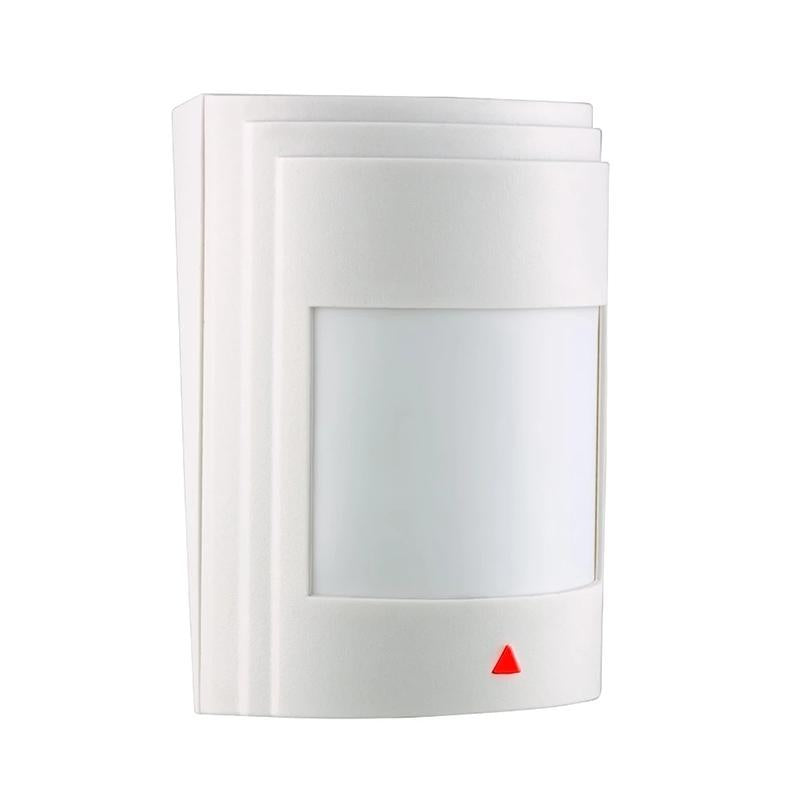

Passive Infrared Motion Sensor Alarm - Wide Angle

Delivery Timeline:
This product is getting shipped from outside Australia. We estimate delivery within 8-12 working days across Australia, excluding weekends and public holidays.

Please note that this timeframe is subject to change due to unforeseen circumstances.

Features:

� Auto pulse signal processing with 2 adjustable levels

� Auto temperature compensation

� High density SMD design

� Additional connector for EOL resistor

� Fire resistant case

� Low noise, high sensitivity, dual element PIR sensor

� Two levels of pulse count sensitivity: 1-3 pulses or 2-6 pulses

� Second generation Fresnel lens

� White light immunity

� 22 zones: 9+5+5+3

� Green LED alarm indication (can be disabled)

� N.C. alarm output with rating of DC 28V, 0.15A

� N.C. anti-tamper switch with rating of 0.15A, 28Vdc

� Power input of DC 9-16V, 18mA

� Operating temperature range of -10C to 50C

� Operating humidity of 95%

Specifications:

� Material: Fire Resistant Case

� Sensor: Low Noise, High Sensitivity, Dual Element Pir Sensor

� Lens: Second Generation Fresnel Lens

� Coverage: 12M x 110 Degrees

� Zones: 22 (9+5+5+3)

� Installation Height: 1.1-3.1M

� Alarm Output: N.C., Rating Dc 28V, 0.15A

� Anti-Tamper Switch: N.C., Opens when Cover is Removed, Rating 0.15A, 28Vdc

� Power Input: Dc 9-16V, 18Ma

� Operating Temperature: -10C to 50C

� Operating Humidity: 95%

� White Light Immunity: Yes

Package Includes:

� 1 x Pa-476 Wired Passive Infrared Wide Angle Pir Motion Sensor Infrared Detector Alarm White
